6.5" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker for Life Safety Applications

Hãng sản xuất:
Mã sản phẩm: Control 426C/T-LS

The JBL Control 426C/T-LS is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Certified to the UL1480 Standard, the Control 426C/T-LS is suitable for life safety applications. Integrated CRBI™ technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T-LS includes a transformer to support both 70V/100V and low impedance applications.

  •

    Superior Sonic Performance

    The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space.

  •

    Efficient, Flexible Installation

    Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

  •

    Refined, Modern Aesthetics

    Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.



Features


  • Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
  • Integrated enclosure that is ideal for installation in most ceiling plenum spaces
  • CRBI™ technology for consistent 110° coverage across the listening area
  • Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
  • Full-face magnetic grilles
  • Top and side exit cable entry optionsv Robust and adaptable dogears for wide range of ceiling thicknesses
  • Certified to the UL1480 Standard for life-safety applications
  • IP33 rated


Downloads


  Version Language Size Uploaded
Specifications
file type icon Control 426C/T-LS – Spec Sheet     723 KB Jan 2025
Manuals
file type icon Control 400 Enhanced Coverage Series – Owner’s Manual     9.99 MB Jan 2025
CAD Drawings
file type icon Control 426C/T-LS - Customer Drawings     12.5 MB Jan 2025
Ease Data
file type icon Control 426C/T-LS – EASE GLL     720 KB Jan 2025
file type icon Control 424C/T-LS – CLF File     326 KB Jan 2025
Certifications
file type icon Control 400 Enhanced Coverage Series – CE Declaration of Conformity     210 KB Feb 2025
file type icon Control 400 Enhanced Coverage Series – UKCA Declaration of Conformity     143 KB Feb 2025

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Accessories

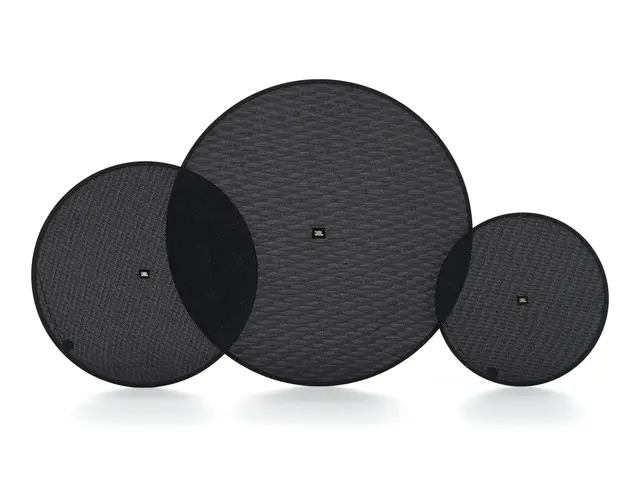

MTC-426BG-LS | Round Black Grille for Control 426C/T-LS
MTC-426BG-LS Main photo
Larger Images

  • Full-face, magnetic grille with tether
  • Sleek and refined look that fits the aesthetic modern designers require
  • Maintains UL1480 Standard for life-safety applications when combined with Control 426C/T-LS

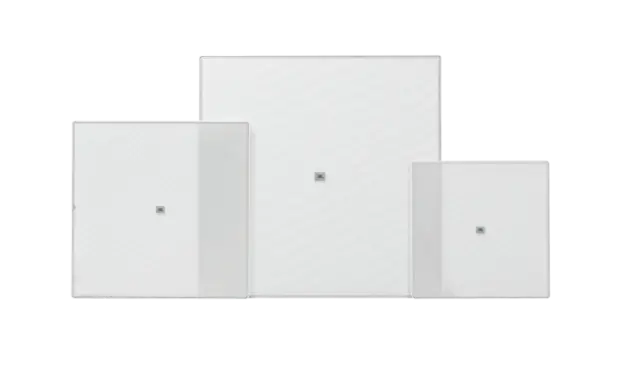

MTC-426SG-LS | Square Grille for Control 426C/T-LS
MTC-426SG-LS Main photo
Larger Images



Frequency Range (-10 dB) 72 Hz – 19 kHz
Power Capacity 220 W Continuous Program (2 hrs) 110 W (440 W Peak), Continuous Pink Noise (2 hrs) 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
Sensitivity 89 dB
Coverage Angle 110° conical
Maximum SPL (1m) 109 dB continuous pink noise (115 dB peak)
Nominal Impedance 12 ohms
Transformer Taps 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W
LF Driver 165 mm (6.5 in)
HF Driver 25 mm (1.0 in)
Dimensions 190 mm (7.4 in) H x 253 mm (9.9 in) dia. 181 mm (7.1 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan).
Ceiling Cutout Size 223 mm (8.8 in)
Safety Agency Rating Suitable for use in air handling spaces per UL1480, CAN/ULC-S541 Speakers for Fire Alarm and Signaling Systems, Including Accessories, UL1480A Speakers for Commercial and Professional Use, UL2043 Fire Test for Heat and Visible Smoke Release for Discrete Products and Their Accessories Installed in Air-Handling Spaces, NFPA90 & NFPA70, S7232/UL Listed. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/EN60849.
Environmental Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C
Optional Accessories JBL-MTC-426BG-LS black (RAL9004) magnetic round grille with tether JBL-MTC-426SG-LS white (RAL9003) magnetic square grille with tether JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket
Color Stock grille is white (RAL9003), paintable.
Net Weight (each) 4.2 kg (9.3 lbs)
Shipping Weight (pair packed in carton) 13.3 kg (29.3 lbs)
SKU Numbers JBL-C426C/T-LS
