The JBL Control 426C/T is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 110° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 426C/T includes a transformer to support both 70V/100V and low impedance applications.
Control 426C/T
Control 426C/T
Control 426C/T
6.5" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker
Hãng sản xuất:
Mã sản phẩm: Control 426C/T
Features
- Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- CRBI™ technology for consistent 110° coverage across the listening area
- Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side exit cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Downloads
| Size | ||||
Specifications |
||||
 Control 426C/T – Spec Sheet |
647 KB | |||
Manuals |
||||
| Control 400 Enhanced Coverage Series – Owner’s Manual |
9.99 MB | |||
CAD Drawings |
||||
 Control 426C/T - Customer Drawings |
12.5 MB | |||
Ease Data |
||||
| Control 426C/T – EASE GLL |
719 KB | |||
| Control 426C/T – CLF File |
326 KB | |||
Certifications |
||||
| Control 400 Enhanced Coverage Series – CE Declaration of Conformity |
210 KB | |||
| Control 400 Enhanced Coverage Series – UKCA Declaration of Conformity |
143 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer
Accessories

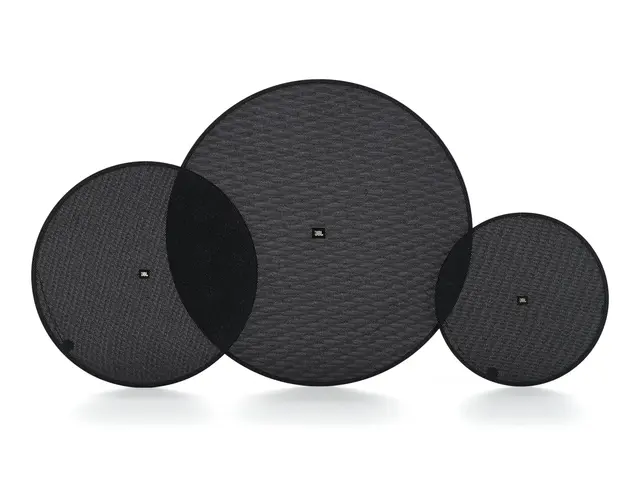

MTC-426BG | Round Black Grille for Control 426C/T, 426LP, & 424LP
Larger Images
- Full-face, magnetic grille with tether
- Sleek and refined look that fits the aesthetic modern designers require
MTC-426SG | Square Grille for Control 426C/T, 426LP, & 424LP
Larger Images
| Frequency Range (-10 dB) | 72 Hz – 19 kHz |
| Power Capacity | 220 W Continuous Program (2 hrs) 110 W (440 W Peak), Continuous Pink Noise (2 hrs) 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs) |
| Sensitivity | 89 dB |
| Coverage Angle | 110° conical |
| Maximum SPL (1m) | 109 dB continuous pink noise (115 dB peak) |
| Nominal Impedance | 12 ohms |
| Transformer Taps | 70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W |
| LF Driver | 165 mm (6.5 in) |
| HF Driver | 25 mm (1.0 in) |
| Dimensions | 190 mm (7.4 in) H x 253 mm (9.9 in) dia. 181 mm (7.1 in) from bottom of ceiling tile to top of backcan (with wire exit positioned on side of backcan). |
| Ceiling Cutout Size | 223 mm (8.8 in) |
| Safety Agency Rating | Suitable for use in air handling spaces per UL1480A, UL2043, NFPA90 & NFPA70, S7232/UL Listing, Speakers for Commercial and Professional Use. Listed per CSA C22.2, no. 205 Signal Equipment. In accordance with IEC60849/ EN60849. |
| Environmental | Exceeds Mil Spec 810H for humidity, salt spray, temperature & UV. IP33 rating per EN/IEC 60529 against solid object and water ingress. Compliant with RoHS2 per EN/IEC63000. Operating temperature 0°C to 45°C |
| Optional Accessories | JBL-MTC-426BG black (RAL9004) magnetic round grille with tether JBL-MTC-426SG white (RAL9003) magnetic square grille with tether JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket |
| Color | Stock grille is white (RAL9003), paintable. |
| Net Weight (each) | 4.2 kg (9.3 lbs) |
| Shipping Weight (pair packed in carton) | 13.3 kg (29.3 lbs) |
| SKU Numbers | JBL-C426C/T |
