18-inch Powered Subwoofer

Hãng sản xuất:
Mã sản phẩm: SRX918SF

The SRX918SF is a powered, flyable single 18-inch subwoofer designed to be deployed in suspended or ground-stacked configurations to complement SRX900 Series full-range systems. The integrated three-point rigging system in the SRX918SF allows units to be suspended in standalone arrays or in combination with SRX910LA cabinets in mixed-array configurations.

The subwoofer houses a JBL 2279-1 18-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug-and-play experience while providing consistency and optimum performance anywhere in the world.

The SRX918SF incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A reinforced 18 mm birch plywood cabinet ensures enhanced strength and durability. A full-featured software package gives users complete control of the system on various platforms, including Windows, macOS, and iPad OS. Learn more about JBL Performance here.



Features


  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion and class-leading output
  • Built-in, passively-cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Complete control and configuration with JBL Performance software over HARMAN's HControl protocol
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides access to control features
  • Reinforced birch plywood enclosures
  • M20 threaded mount for pole mounting or ground stacking full range components
  • Integrated three-point rigging system


Downloads


  Version Language Size Uploaded
Specifications
file type icon SRX918SF Spec Sheet en  443 KB Jan 2025
Manuals
file type icon SRX900 Series User Manual en  10.5 MB Jan 2025
file type icon SRX900 Series Rigging Manual en  47.8 MB Jan 2025
file type icon SRX900S - Quick Start Guide   1.35 MB Jan 2025
file type icon Assembly Instructions - powerCON TRUE1 4.0  en  8.64 MB Jan 2025
CAD Drawings
file type icon SRX918SF Customer Drawings   1.99 MB Jan 2025
file type icon SRX900 Series Revit/BIM Files 2.0    66.8 MB Jan 2025
file type icon SRX900 Series Sketchup Files 2.0    5.44 MB Jan 2025
Software
platform icon Venue Synthesis       Jan 2025
platform icon ArrayLink       Jan 2025
platform icon Performance Software       Jan 2025
platform icon SRX900 Module for AMX       Jan 2025
platform icon SRX900 Plugin for Q-SYS 1.1.3     4.13 MB Jan 2025
Firmware
file type icon SRX900 Series Firmware Changelog 1.6.17.55  en  60.1 KB Aug 2024
Declaration Of Conformity
file type icon SRX900 Series - EU Declaration of Conformity en  214 KB Jan 2025
file type icon SRX900 Series - UKCA Declaration of Conformity en  145 KB Jan 2025
file type icon SRX900 Series - CB Certificate of Compliance en  428 KB Jan 2025
file type icon SRX900 Series - UL Certificate of Compliance en  437 KB Jan 2025
file type icon SRX900 Series - Taiwan RoHS Documentation 1.0  zh  130 KB Jan 2025
Ease Data
file type icon SRX900 Series - EASE GLL 1.0    14 MB Jan 2025

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Accessories

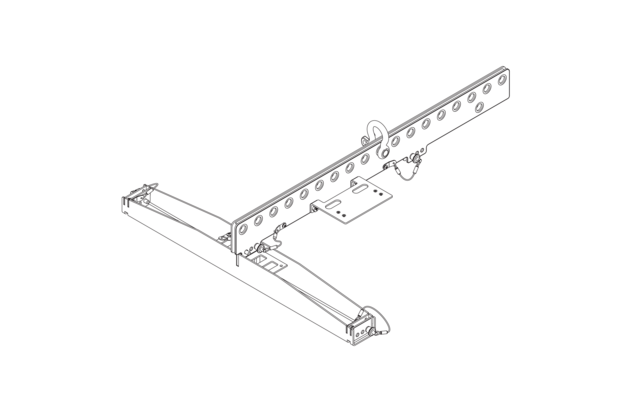

SRX910LA AF | Array Frame for SRX910LA, support for up to 16 cabinets
SRX910LA AF Main photo
Larger Images

Highlights:

  • Compact and lightweight design
  • Precision pick-point resolution
  • Two-part collapsible design
  • Support for third-party laser inclinometers
  • Maximum Limit: (16) SRX910LA
  • Compatible shackle size: 1/2 in

Included:

  • (1) Spreader Bar
  • (1) Extension Bar
  • (1) 1/2-inch Shackle
  • (1) Laser Bracket and Hardware


Documentation

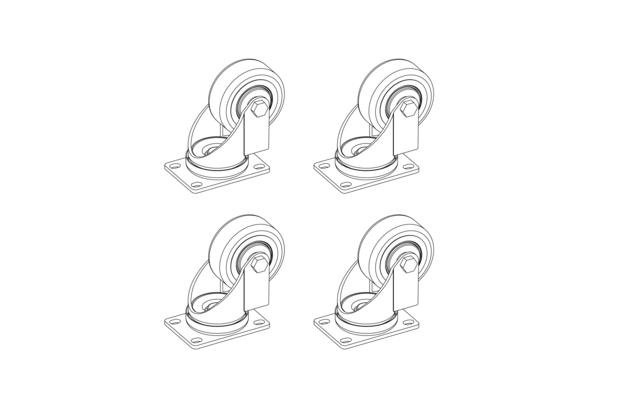

ACK1 | Accessory Caster Kit
ACK1 Main photo
Larger Images

Highlights:

  • Universal caster kit for JBL products
  • Compatible with all SRX900 Series subwoofers
  • Black housing for discreet look
  • Black polyurethane wheel
  • Anti-rattle features for vibration-free operation

Included:

  • (4) Casters + Installation Hardware


Documentation

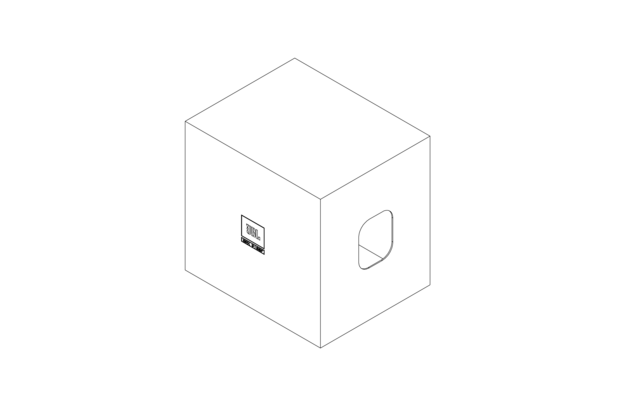

SRX918SF CVR | Cover for SRX918SF
SRX918SF CVR Main photo
Larger Images

Highlights:

  • Heavy duty soft cover for SRX918SF subwoofer
  • Handle cutouts for easy transportation
  • Includes folding feature for storage
  • Internally reinforced for grille protection

Included:

  • (1) Cover

Notes:

  • The SRX918SF CVR is not compatible with the SRX918S subwoofer
  • Use the SRX918S CVR for the SRX918S


Documentation

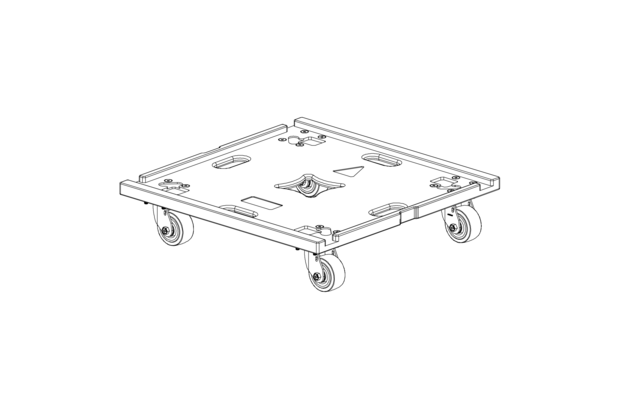

SRX918S VT | Vertical Transporter for SRX918S/SF
SRX918S VT Main photo
Larger Images

Highlights:

  • Vertical transport cart for SRX918S/SRX918SF
  • Support for up to three cabinets
  • Truck-friendly dimensions
  • Built-in stacking features for easy storage
  • Heavy duty casters
  • One black ratchet strap included

Included:

  • (1) SRX918S VT
  • (1) Black Ratchet Strap


Documentation
SRX918S VT CVR | Vertical Transporter Cover for SRX918S/SF
SRX918S VT CVR Main photo
Larger Images

Highlights:

  • Heavy duty soft cover for SRX918S/SRX918SF
  • Covers two or three enclosures
  • Includes amplifier flaps for testing purposes
  • Handle cutouts for easy transportation
  • Heavy duty industrial-grade zippers
  • Foldable design for storage

Included:

  • (1) Cover


Documentation

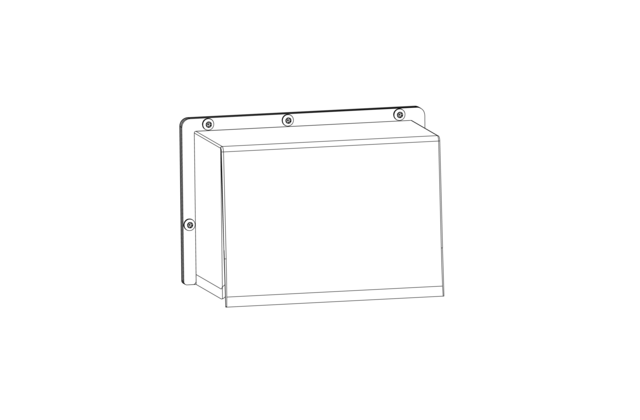

SRX900 RC1 | Rain Cover, compatible with all SRX900 models
SRX900 RC1 Main photo
Larger Images

Highlights:

  • Universal rain cover for SRX900 products
  • Flexible material for conforming to cables
  • Covers LCD, audio, and data connections
  • Unfolds for easy cable and LCD access
  • Designed to remain attached

Compatibility:

  • SRX906LA
  • SRX910LA
  • SRX915SF
  • SRX918SF
  • SRX918S
  • SRX928S

Included:

  • (1) Rain Cover
  • (5) T15 M3.5 Screws


Documentation



Frequency Range (-10dB) 35 Hz -100 Hz
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 134 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continuous Power Rating 1,100 Watts
LF Driver (1) JBL 2279G-1, 18 in diameter, 4 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Exterior grade birch plywood, Black DuraFlex finish
Dimensions (H x W x D) 575 mm x 710 mm x 683 mm
(22.6 in x 28.0 in x 26.9 in)
Net Weight (each) 54.4 kg (120 lbs)
